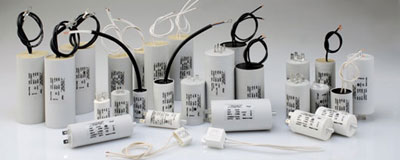

PMP XXxxx series

Capacitors for A.C. use.



Plastic case:

Consisting of self-extinguishing plastic material, shockproof and resistant
to high temperature, with or without metal stud M8.

Construction:
Self-healing metallized polypropylene film.

Terminals:
Faston 6,3mm. single or double;
Twin core cable;
Wires.

Application:
Starting and run of single-phase motors;
Power factor correction;
Lighting capacitors;

Our production is based on the following series:

- PMP 45xxx series to 450 V.
- PMP 40xxx series to 400 V.
- PMP 25xxx series to 250 V.
- PMP 60xxx series to 550 V.


We manufacture also capacitors according to special customers' requirements,
with capacitance as shown in the table.

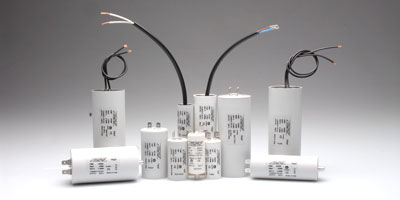

PMP45xxx - 450 V. top




ELECTRICAL CHARACTERISTICS:


- Rated voltage: 450 V. a.c.
-Capacitance tolerance: ± 5 %
-Working frequency range: 50 Hz.
-Dissipation factor tgD: max. 0,0030 to 20°C, V=U, 50Hz.
-Working temperature: -25°C / +85°C
-Operation class: 3.000 h
-Test voltage between terminals: 2 Vn for 2 seconds
-Test volt. between terminals and case: 3 kV a.c. for 2 seconds
-Reference standards: EN 60252

Approval IMQ from 1,5μF to 45μF

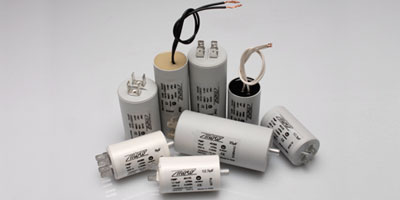

PMP40xxx - 400 V. top



ELECTRICAL CHARACTERISTICS:


-Rated voltage: 400 V. a.c.
-Capacitance tolerance: ± 5 %
-Working frequency range: 5060 Hz.
-Dissipation factor tgD: max. 0,0030 to 20°C, V=U, 50Hz.
-Working temperature: -25°C / +85°C
-Operation class: 3.000 h
-Test voltage between terminals: 2 Vn for 2 seconds
-Test volt. between terminals and case: 3 kV a.c. for 2 seconds
-Reference standards: EN 60252

Approval IMQ from 1,5μF to 50μF

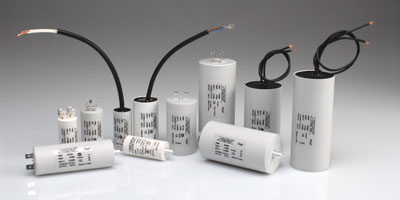

PMP25xxx - 250 V. top



ELECTRICAL CHARACTERISTICS:


-Rated voltage: 250 V. a.c.
-Capacitance tolerance: ± 5 %
-Working frequency range: 50 Hz.
-Dissipation factor tgD: max. 0,0030 to 20°C, V=U, 50Hz.
-Working temperature: -25°C / +85°C
-Operation class: 3.000 h
-Test voltage between terminals: 2 Vn for 2 seconds
-Test volt. between terminals and case: 3 kV a.c. for 2 seconds
-Reference standards: EN 60252

Approval: none

Capacitance manufactured:
from 1,5 μF to 200 μF;
the intermediary capacitance reflect those of the PMP40xxx series.
This series is particulary suitable for 110V. motors or
for power factor correction of ballast for discharge lamps.

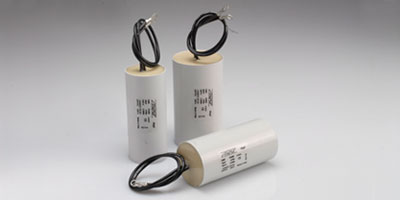

PMP60xxx - 550 V. top



ELECTRICAL CHARACTERISTICS:


-Rated voltage: 550 V. a.c. servizio continuo
-Capacitance tolerance: ± 5 %
-Working frequency range: 50 Hz.
-Dissipation factor tgD: max. 0,0030 a 20°C, V=U, 50Hz.
-Working temperature: -25°C / +85°C
-Operation class: 3.000 h
-Test voltage between terminals: 2 Vn per 2 secondi
-Test volt. between terminals and case: 3 kV a.c. per 2 secondi
-Reference standards: EN 60252

Approval: none

Capacitance manufactured:
from 1,5 μF to 80 μF;
the intermediary capacitance reflect those of the PMP45xxx series.
This series is suitable for motors which work under particulary heavy condition or
for power factor correction.
